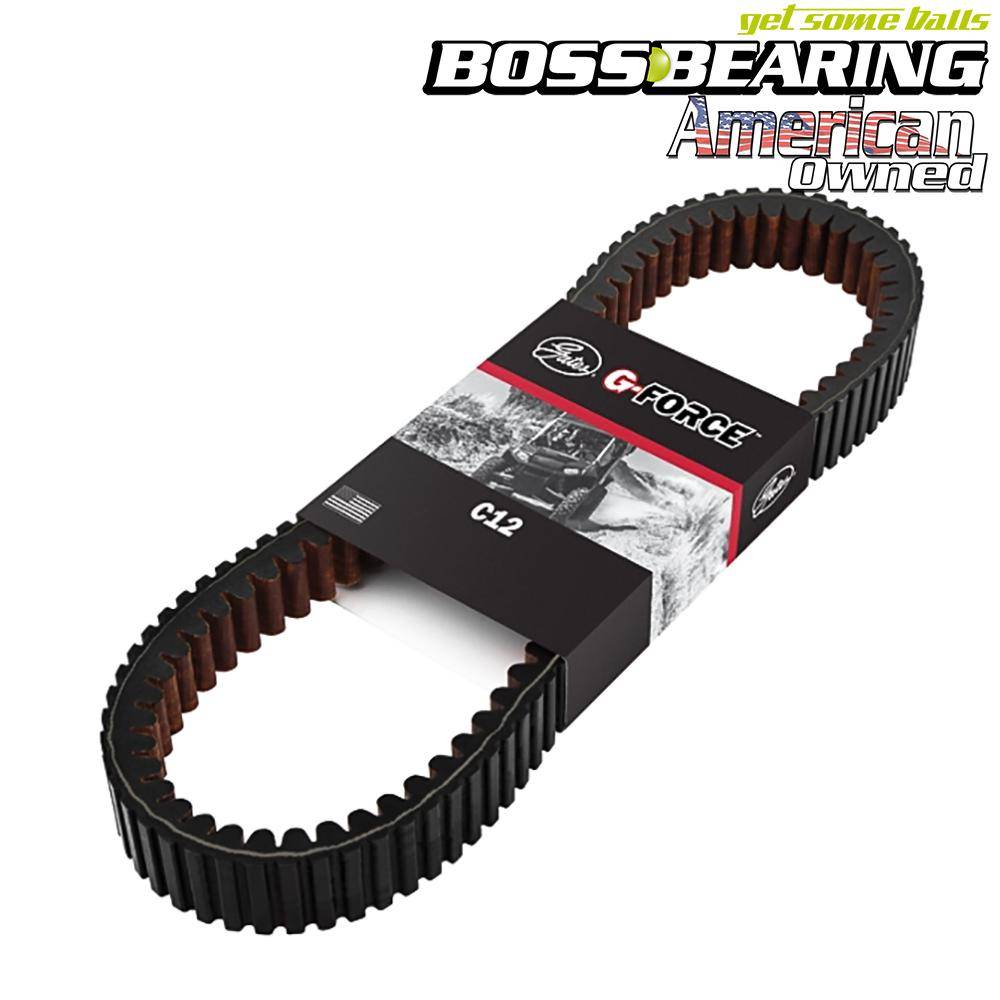

Gates 40C4340 G Force C12 CVT Carbon Drive Belt

Gates G-Force C12 Drive Belt

(0) Reviews: Write first review
40C4340
For over a century, Gates has driven innovation in belt technology to power the machines that move you. Gates G-Force® C12® CVT belt drives are engineered to navigate the toughest off-road trails with power and efficiency. The industry's first CVT belt with carbon tensile cord also features a trapezoid top-notch and rounded cog design for superior flexibility and heat dissipation, along with a unique gum adhesion that reduces fiber pullout within the belt extending the life of the belt. Gates combines material science and process engineering to create innovative products that provide performance, reliability and the strength to withstand even the most challenging off-road environments.

  • Advanced carbon cord results in minimal stretch with extraordinary strength for faster acceleration.
  • Trapezoidal top cog with rounded bottom cog provides excellent flexibility and efficiency.
  • Aramid fiber loaded elastomer compound for durability and optimized performance.
  • Gains optimal power transmission for fast acceleration, improved throttle response, and consistent shifting performance.
  • Maintains peak power throughout the shift curve.

Break In Procedure
If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these three steps to ensure the best performance and longest life from your G-Force™ belt.

1. Install the Right Belt. Using a belt that’s even slightly different than the OE specifications can affect performance - or stop you in your tracks.

2. Align and Clean. Align the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.

3. Install and Break It In. Perform two heat cycles (10-15 minutes each) at 80°F at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of 60°F or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
Not Available
Pricing: $99.78

Application Detail

YearsMakeModelSubmodelNotes
2017 - 2017YamahaApexRX10
2016 - 2017YamahaApexRX10L LE
2009 - 2016YamahaApexRX10P
2011 - 2015YamahaApexRX10PS SE
2010 - 2015YamahaApexRX10R
2006 - 2007YamahaApex ERRX10R
2006 - 2010YamahaApex GTRX10GT
2008 - 2008YamahaApex GTRX10GTA 40th Anniversary
2008 - 2010YamahaApex LTXRX10LT
2008 - 2010YamahaApex LTX GTRX10LTGT
2008 - 2008YamahaApex LTX GTRX10LTGTA 40th Anniversary
2006 - 2007YamahaApex MountainRX10M
2007 - 2007YamahaApex MountainRX10MS SE
2008 - 2010YamahaApex MTXRX10MT
2008 - 2008YamahaApex MTXRX10MTA SE 40th Anniversary
2006 - 2009YamahaApex RTXRX10RT
2006 - 2007YamahaApex RTXRX10RT Reverse
2011 - 2017YamahaApex XTXRX10PX
2016 - 2017YamahaApex XTXRX10XT75 1.75
2016 - 2017YamahaApex XTXRX10XTL LE 1.75
2006 - 2007YamahaAttakRXW10
2007 - 2007YamahaAttak GTRXW10GT
2008 - 2014YamahaFX NytroFX10
2012 - 2014YamahaFX Nytro MTXFX10M 153in
2012 - 2014YamahaFX Nytro MTXFX10M 162in
2010 - 2011YamahaFX Nytro MTXFX10M SE 153in
2008 - 2010YamahaFX Nytro MTXFX10MT
2008 - 2008YamahaFX Nytro MTXFX10MTR Reverse
2008 - 2008YamahaFX Nytro MTXFX10MTRA 40th Anniversary
2010 - 2011YamahaFX Nytro MTXFX10MTS SE 162in
2010 - 2011YamahaFX Nytro MTXSE FX10MTS 153in
2008 - 2008YamahaFX Nytro RTXFX10RT
2009 - 2013YamahaFX Nytro RTXFX10RTR
2008 - 2008YamahaFX Nytro RTXFX10RTR Reverse
2008 - 2008YamahaFX Nytro RTXFX10RTRA 40th Anniversary
2009 - 2010YamahaFX Nytro RTXFX10RTRS SE
2010 - 2013YamahaFX Nytro XTXFX10XT
2013 - 2014YamahaFX Nytro XTXFX10XT 1.75
2012 - 2012YamahaFX Nytro XTXFX10XT Backcountry
1999 - 2002YamahaMountain Max 600MM600
1998 - 2003YamahaMountain Max 700MM700
1998 - 1998YamahaMountain SRX 700MSRX700
2006 - 2007YamahaNytroRS90N
2006 - 2007YamahaNytro ERRS90NR
2008 - 2009YamahaPhazerPZ50
2008 - 2013YamahaPhazer GTPZ50GT
2008 - 2016YamahaPhazer MTXPZ50MT
2008 - 2016YamahaPhazer RTXPZ50RTX
2014 - 2016YamahaPhazer XTXPZ50XT
2005 - 2006YamahaRS RageRSG90
2005 - 2006YamahaRS VectorRS90
2016 - 2016YamahaRS VectorRS90L LE
2008 - 2016YamahaRS VectorRS90P
2008 - 2015YamahaRS VectorRS90R
2005 - 2006YamahaRS Vector ERRS90R
2006 - 2011YamahaRS Vector GTRS90GT
2008 - 2008YamahaRS Vector GTRS90GTA 40th Anniversary
2008 - 2015YamahaRS Vector LTXRS90LT
2008 - 2011YamahaRS Vector LTX GTRS90LTGT
2005 - 2007YamahaRS Vector MountainRS90M
2006 - 2007YamahaRS Vector MountainRS90MS SE
2016 - 2017YamahaRS Vector XTXRS90XT
2016 - 2017YamahaRS Vector XTXRS90XT75 1.75
2016 - 2017YamahaRS Vector XTXRS90XTL LE 1.75
2005 - 2017YamahaRS VentureRST90
2007 - 2015YamahaRS Venture GTRST90GT
2013 - 2014YamahaRS Venture TFRS10
2015 - 2017YamahaRS Venture TFRST90TF
2016 - 2017YamahaRS Venture TFRST90TFL LE
2017 - 2017YamahaRS Venture TFRST90TFY BAT
2016 - 2016YamahaRS Venture TFRST90TFY E-BAT Yellowstone
2008 - 2015YamahaRS Viking ProfessionalVK10
2004 - 2005YamahaRX WarriorRXW10
2003 - 2005YamahaRX1RX10
2003 - 2005YamahaRX1 ERRX10R
2003 - 2003YamahaRX1 ER LERX10RS
2003 - 2004YamahaRX1 LERX10S
2003 - 2005YamahaRX1 MountainRX10M
2003 - 2005YamahaRX1 Mountain LERX10MS
1998 - 1999YamahaSRX600--
1998 - 2002YamahaSRX700--
2004 - 2006YamahaSX VenomSXV60
2004 - 2006YamahaSX Venom ERSXV60ER
2002 - 2003YamahaSX ViperSXV700
2002 - 2004YamahaSX Viper ERSXV700ER
2003 - 2006YamahaSX Viper MountainSXV70MH
2000 - 2003YamahaSX600R--
2000 - 2001YamahaSX700R--
1999 - 2000YamahaVenture 500 XLVT500XL
1999 - 2006YamahaVenture 600VT600
1998 - 2004YamahaVenture 700VT700
2007 - 2013YamahaVenture LitePZ50VT
2016 - 2016YamahaVenture MPPZ50
2013 - 2015YamahaVenture MPRPZ50
2006 - 2007YamahaVK ProfessionalVK10
2016 - 2016YamahaVK ProfessionalVK10F II
1999 - 2000YamahaVMAX 500VX500
2000 - 2000YamahaVMAX 500VX500DX Deluxe
1999 - 1999YamahaVMAX 500 SXVX500SX
1999 - 1999YamahaVMAX 600VX600
2000 - 2001YamahaVMAX 600VX600DX Deluxe
2002 - 2003YamahaVMAX 600 ERVX600ER
1999 - 1999YamahaVMAX 600 SXVX600SX
1999 - 2001YamahaVMAX 700VX700
1999 - 2001YamahaVMAX 700VX700DX Deluxe
2002 - 2002YamahaVMAX 700 ERVX700ER
1998 - 1999YamahaVMAX 700 SXVX700SX
1998 - 1998YamahaVMAX 700 XTVX700XT
1998 - 1998YamahaVMAX 700 XTCVX700XTC
1998 - 1998YamahaVMAX 700 XTCDVX700XTC Deluxe

Shipping Information

  • Item Requires Shipping
  • 15.0 lbs.
  • W6.0000” x H2.0000” x L9.0000”
  • Free Shipping!
