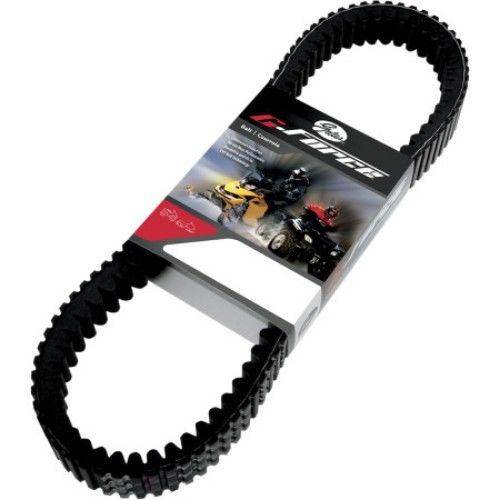

Gates 40G4683 G Force CVT Drive Belt High Performance
Drive Belt
40G4683
Gates® G-Force™ continuously variable transmission (CVT) belts are the ultimate, high-tech component for transferring power on your smaller recreational power sports equipment. Gates designed G-Force™ belts with durability, simplicity, performance, and value in mind, then tested them under tough conditions in controlled environments. So, whether you’re loading up your UTV for a hard day’s work or off-roading on the road less traveled, Gates recreational belt drives and power transmission solutions continue to push the limits of what’s possible so you can, too.
Break In Procedure
If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these three steps to ensure the best performance and longest life from your G-Force™ belt.
1. Install the Right Belt. Using a belt that’s even slightly different than the OE specifications can affect performance - or stop you in your tracks.
2. Align and Clean. Align the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.
3. Install and Break It In. Perform two heat cycles (10-15 minutes each) at 80°F at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of 60°F or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
- Performance, durability, simplicity and value in extreme off-road environments.
- Flexible, high-performance materials enable grab and go mobility and responsive acceleration.
- Extended Life — shown to outlast other aftermarket belts by up to 5X.
- Advanced aramid tensile cords and reinforced fiber loaded undercord for durability and dependability.
Break In Procedure
If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these three steps to ensure the best performance and longest life from your G-Force™ belt.
1. Install the Right Belt. Using a belt that’s even slightly different than the OE specifications can affect performance - or stop you in your tracks.
2. Align and Clean. Align the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.
3. Install and Break It In. Perform two heat cycles (10-15 minutes each) at 80°F at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of 60°F or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
Not Available
Pricing:
$76.87
Application Detail
| Years | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2002 - 2002 | Arctic Cat | 4 Stroke | Touring | |
| 2002 - 2002 | Arctic Cat | 4 Stroke | Trail | |
| 1995 - 1998 | Arctic Cat | Cougar | -- | |
| 1996 - 1996 | Arctic Cat | Cougar | 2 Up | |
| 1998 - 1998 | Arctic Cat | Cougar | Deluxe | |
| 1995 - 1998 | Arctic Cat | Cougar | Mountain Cat | |
| 1994 - 1996 | Arctic Cat | EXT 580 | -- | |
| 1996 - 1998 | Arctic Cat | EXT 580 | Deluxe EFI | |
| 1993 - 1998 | Arctic Cat | EXT 580 | EFI | |
| 1993 - 1994 | Arctic Cat | EXT 580 | Mountain Cat | |
| 1993 - 1996 | Arctic Cat | EXT 580 | Mountain Cat EFI | |
| 1995 - 1995 | Arctic Cat | EXT 580 | Mountain Cat EFI Deep Lug | |
| 1994 - 1994 | Arctic Cat | EXT 580 | Mountain Cat Wave | |
| 1994 - 1994 | Arctic Cat | EXT 580 | Mountain Cat Wave EFI | |
| 1995 - 1996 | Arctic Cat | EXT 580 | Powder Special | |
| 1993 - 1993 | Arctic Cat | EXT 580 | Z | |
| 1998 - 1998 | Arctic Cat | EXT 600 | Touring | |
| 1998 - 1998 | Arctic Cat | EXT 600 | Triple | |
| 2003 - 2003 | Arctic Cat | F5 Firecat 500 | -- | |
| 2003 - 2003 | Arctic Cat | F5 Firecat 500 | Sno Pro | |
| 2006 - 2006 | Arctic Cat | F6 Firecat 600R | EFI | |
| 2003 - 2003 | Arctic Cat | F7 Firecat 700 | EFI | |
| 2003 - 2003 | Arctic Cat | F7 Firecat 700 | Sno Pro EFI | |
| 1998 - 1998 | Arctic Cat | Jag 340 | -- | |
| 1998 - 1999 | Arctic Cat | Jag 340 | Deluxe | |
| 1998 - 1999 | Arctic Cat | Jag 440 | -- | |
| 1998 - 1999 | Arctic Cat | Jag 440 | Deluxe | |
| 2004 - 2005 | Arctic Cat | King Cat 900 | 162in | |
| 2005 - 2005 | Arctic Cat | King Cat 900 | Early Build EFI 162in | |
| 2006 - 2006 | Arctic Cat | King Cat 900 | EFI | |
| 2005 - 2005 | Arctic Cat | King Cat 900 | EFI 162in | |
| 2001 - 2002 | Arctic Cat | Mountain Cat 1000 | -- | |
| 2002 - 2002 | Arctic Cat | Mountain Cat 500 | -- | |
| 2002 - 2004 | Arctic Cat | Mountain Cat 570 | -- | |
| 2001 - 2004 | Arctic Cat | Mountain Cat 600 | EFI | |
| 2003 - 2003 | Arctic Cat | Mountain Cat 600 | EFI 136in | |
| 2003 - 2003 | Arctic Cat | Mountain Cat 600 | EFI 144in | |
| 2001 - 2002 | Arctic Cat | Mountain Cat 600 | Limited EFI | |
| 2001 - 2001 | Arctic Cat | Mountain Cat 600 | VEV | |
| 2001 - 2002 | Arctic Cat | Mountain Cat 800 | -- | |
| 2002 - 2002 | Arctic Cat | Mountain Cat 800 | EFI | |
| 2003 - 2003 | Arctic Cat | Mountain Cat 800 | EFI 144in | |
| 2003 - 2004 | Arctic Cat | Mountain Cat 800 | EFI 151in | |
| 2004 - 2004 | Arctic Cat | Mountain Cat 800 | EFI 159in | |
| 2001 - 2001 | Arctic Cat | Mountain Cat 800 | Limited | |
| 2002 - 2002 | Arctic Cat | Mountain Cat 800 | Limited 144in | |
| 2002 - 2002 | Arctic Cat | Mountain Cat 800 | Limited 151in | |
| 2002 - 2002 | Arctic Cat | Mountain Cat 800 | Limited EFI 144in | |
| 2002 - 2002 | Arctic Cat | Mountain Cat 800 | Limited EFI 151in | |
| 2003 - 2003 | Arctic Cat | Mountain Cat 900 | 144in | |
| 2003 - 2004 | Arctic Cat | Mountain Cat 900 | 151in | |
| 2004 - 2004 | Arctic Cat | Mountain Cat 900 | 159in | |
| 2003 - 2003 | Arctic Cat | Mountain Cat 900 | 1M | |
| 2003 - 2003 | Arctic Cat | Mountain Cat 900 | Early Build | |
| 2004 - 2004 | Arctic Cat | Mountain Cat 900 | EFI 151in | |
| 2004 - 2004 | Arctic Cat | Mountain Cat 900 | EFI 159in | |
| 2000 - 2001 | Arctic Cat | Pantera 1000 | -- | |
| 2002 - 2005 | Arctic Cat | Pantera 550 | -- | |
| 1998 - 1998 | Arctic Cat | Pantera 580 | -- | |
| 1999 - 2001 | Arctic Cat | Pantera 580 | EFI | |
| 2004 - 2005 | Arctic Cat | Pantera 600 | EFI | |
| 2002 - 2003 | Arctic Cat | Pantera 600 | ESR EFI | |
| 1998 - 1999 | Arctic Cat | Pantera 800 | -- | |
| 2004 - 2004 | Arctic Cat | Pantera 800 | EFI | |
| 2004 - 2004 | Arctic Cat | Panther 370 | -- | |
| 2005 - 2006 | Arctic Cat | Panther 370R | -- | |
| 1997 - 2001 | Arctic Cat | Panther 440 | -- | |
| 2001 - 2001 | Arctic Cat | Panther 440 | ESR | |
| 1997 - 2001 | Arctic Cat | Panther 550 | -- | |
| 2004 - 2007 | Arctic Cat | Panther 570 | -- | |
| 2002 - 2003 | Arctic Cat | Panther 570 | ESR | |
| 2002 - 2002 | Arctic Cat | Panther 570R | -- | |
| 1997 - 1998 | Arctic Cat | Powder Extreme 600 | -- | |
| 1997 - 2000 | Arctic Cat | Powder Special 600 | -- | |
| 2000 - 2000 | Arctic Cat | Powder Special 600 | 2K | |
| 1997 - 2000 | Arctic Cat | Powder Special 600 | EFI | |
| 1999 - 1999 | Arctic Cat | Powder Special 600 | I EFI | |
| 2000 - 2000 | Arctic Cat | Powder Special 600 | Limited | |
| 1998 - 2000 | Arctic Cat | Powder Special 600 | Limited EFI | |
| 1999 - 1999 | Arctic Cat | Powder Special 600 | Limited II EFI | |
| 1999 - 2000 | Arctic Cat | Powder Special 700 | -- | |
| 1999 - 2000 | Arctic Cat | Powder Special 700 | Limited | |
| 1995 - 1995 | Arctic Cat | Prowler | 2 Up | |
| 1997 - 1997 | Arctic Cat | Puma | -- | |
| 1997 - 1997 | Arctic Cat | Puma | 2 Up | |
| 1997 - 1997 | Arctic Cat | Puma | Deluxe | |
| 2004 - 2005 | Arctic Cat | Sabercat 500 | -- | |
| 2006 - 2006 | Arctic Cat | Sabercat 500 | EFI | |
| 2004 - 2005 | Arctic Cat | Sabercat 500 | LX | |
| 2006 - 2006 | Arctic Cat | Sabercat 500 | LX EFI | |
| 2004 - 2004 | Arctic Cat | Sabercat 600 | -- | |
| 2004 - 2005 | Arctic Cat | Sabercat 600 | EFI | |
| 2004 - 2005 | Arctic Cat | Sabercat 600 | EXT EFI | |
| 2004 - 2004 | Arctic Cat | Sabercat 600 | LX | |
| 2004 - 2005 | Arctic Cat | Sabercat 600 | LX EFI | |
| 1993 - 2002 | Arctic Cat | Thundercat | -- | |
| 1994 - 2000 | Arctic Cat | Thundercat | Mountain Cat | |
| 1995 - 1995 | Arctic Cat | Thundercat | Mountain Cat Deep Lug | |
| 1994 - 1994 | Arctic Cat | Thundercat | Mountain Cat Wave | |
| 2000 - 2000 | Arctic Cat | Thundercat | THC | |
| 1999 - 2000 | Arctic Cat | Triple Touring 600 | -- | |
| 2001 - 2001 | Arctic Cat | Triple Touring 660 | -- | |
| 1995 - 1996 | Arctic Cat | Wildcat 700 | -- | |
| 1995 - 1996 | Arctic Cat | Wildcat 700 | Mountain Cat | |
| 1995 - 1995 | Arctic Cat | Wildcat 700 | Mountain Cat Deep Lug | |
| 1995 - 1996 | Arctic Cat | Wildcat 700 | Touring | |
| 2000 - 2007 | Arctic Cat | Z 370 | -- | |
| 2000 - 2002 | Arctic Cat | Z 370 | ES | |
| 2003 - 2003 | Arctic Cat | Z 370 | ESR | |
| 2004 - 2006 | Arctic Cat | Z 370 | LX | |
| 2007 - 2007 | Arctic Cat | Z 370 | LXR | |
| 1995 - 2002 | Arctic Cat | Z 440 | -- | |
| 2000 - 2002 | Arctic Cat | Z 440 | ES | |
| 2003 - 2003 | Arctic Cat | Z 440 | ESR | |
| 2004 - 2006 | Arctic Cat | Z 440 | LX | |
| 1999 - 2003 | Arctic Cat | Z 440 | Sno Pro | |
| 2002 - 2007 | Arctic Cat | Z 570 | -- | |
| 2002 - 2003 | Arctic Cat | Z 570 | ESR | |
| 2004 - 2006 | Arctic Cat | Z 570 | LX | |
| 2007 - 2007 | Arctic Cat | Z 570 | LXR | |
| 2002 - 2002 | Arctic Cat | Z 570 | SS | |
| 1998 - 2000 | Arctic Cat | ZL 440 | -- | |
| 1998 - 2002 | Arctic Cat | ZL 500 | -- | |
| 1999 - 2000 | Arctic Cat | ZL 500 | EFI | |
| 2001 - 2001 | Arctic Cat | ZL 500 | ESR EFI | |
| 2001 - 2003 | Arctic Cat | ZL 550 | -- | |
| 2000 - 2003 | Arctic Cat | ZL 550 | ESR | |
| 2001 - 2001 | Arctic Cat | ZL 550 | ESR EFI | |
| 2003 - 2003 | Arctic Cat | ZL 550 | ESR Limited | |
| 2000 - 2000 | Arctic Cat | ZL 580 | ESR EFI | |
| 1999 - 2000 | Arctic Cat | ZL 600 | -- | |
| 1999 - 2003 | Arctic Cat | ZL 600 | EFI | |
| 2001 - 2003 | Arctic Cat | ZL 600 | ESR EFI | |
| 2002 - 2003 | Arctic Cat | ZL 600 | SS EFI | |
| 2002 - 2003 | Arctic Cat | ZL 600 | SS ESR EFI | |
| 2000 - 2000 | Arctic Cat | ZL 700 | -- | |
| 2001 - 2001 | Arctic Cat | ZL 800 | ESR | |
| 2002 - 2003 | Arctic Cat | ZL 800 | ESR EFI | |
| 2001 - 2001 | Arctic Cat | ZL 800 | ESR Illusion | |
| 2002 - 2003 | Arctic Cat | ZL 800 | SS EFI | |
| 1994 - 1998 | Arctic Cat | ZR 440 | -- | |
| 1998 - 2002 | Arctic Cat | ZR 440 | Sno Pro | |
| 2001 - 2001 | Arctic Cat | ZR 440 | Sno Pro Cross Country | |
| 2001 - 2001 | Arctic Cat | ZR 440 | Sno Pro Sno Cross | |
| 1998 - 2002 | Arctic Cat | ZR 500 | -- | |
| 2002 - 2002 | Arctic Cat | ZR 500 | Cross Country | |
| 1999 - 2001 | Arctic Cat | ZR 500 | EFI | |
| 2001 - 2001 | Arctic Cat | ZR 500 | ESR EFI | |
| 1999 - 2002 | Arctic Cat | ZR 500 | Limited | |
| 1999 - 1999 | Arctic Cat | ZR 500 | Limited EFI | |
| 1994 - 1996 | Arctic Cat | ZR 580 | -- | |
| 1995 - 1997 | Arctic Cat | ZR 580 | EFI | |
| 1996 - 1996 | Arctic Cat | ZR 580 | ETT EFI | |
| 1998 - 2002 | Arctic Cat | ZR 600 | -- | |
| 2000 - 2000 | Arctic Cat | ZR 600 | 2K | |
| 2000 - 2000 | Arctic Cat | ZR 600 | Blair Morgan Signiture Edition | |
| 2002 - 2002 | Arctic Cat | ZR 600 | Cross Country EFI | |
| 1998 - 2002 | Arctic Cat | ZR 600 | EFI | |
| 1999 - 1999 | Arctic Cat | ZR 600 | Limited | |
| 1998 - 2001 | Arctic Cat | ZR 600 | Limited EFI | |
| 2000 - 2000 | Arctic Cat | ZR 600 | Limited Reverse EFI | |
| 1998 - 1998 | Arctic Cat | ZR 600 | Limited XC EFI | |
| 2001 - 2001 | Arctic Cat | ZR 600 | VEV | |
| 1994 - 2000 | Arctic Cat | ZR 700 | -- | |
| 2000 - 2000 | Arctic Cat | ZR 700 | Limited | |
| 2000 - 2000 | Arctic Cat | ZR 700 | Limited Reverse | |
| 2001 - 2002 | Arctic Cat | ZR 800 | -- | |
| 2002 - 2002 | Arctic Cat | ZR 800 | Cross Country | |
| 2002 - 2002 | Arctic Cat | ZR 800 | Cross Country EFI | |
| 2002 - 2003 | Arctic Cat | ZR 800 | EFI | |
| 2001 - 2001 | Arctic Cat | ZR 800 | Limited | |
| 2003 - 2003 | Arctic Cat | ZR 800 | Sno Pro EFI | |
| 2003 - 2003 | Arctic Cat | ZR 900 | -- | |
| 2003 - 2003 | Arctic Cat | ZR 900 | Early Build | |
| 2003 - 2003 | Arctic Cat | ZR 900 | Sno Pro | |
| 1995 - 2002 | Arctic Cat | ZRT 600 | -- | |
| 2001 - 2002 | Arctic Cat | ZRT 600 | Limited | |
| 1995 - 2001 | Arctic Cat | ZRT 800 | -- | |
| 2001 - 2001 | Arctic Cat | ZRT 800 | Limited |
