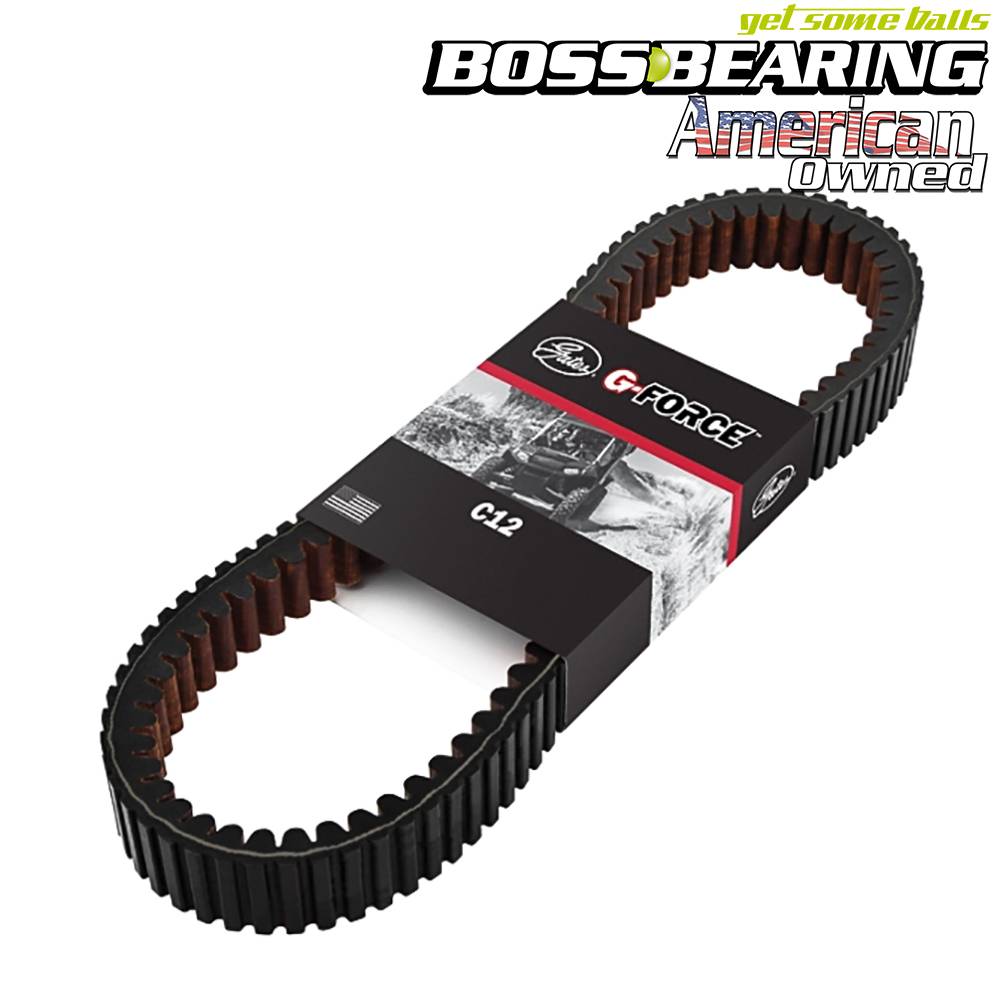

Gates 19C3218 G Force C12 CVT Carbon Drive Belt
See below to confirm fitment.
19C3218
For over a century, Gates has driven innovation in belt technology to power the machines that move you. Gates G-Force® C12® CVT belt drives are engineered to navigate the toughest off-road trails with power and efficiency. The industry's first CVT belt with carbon tensile cord also features a trapezoid top-notch and rounded cog design for superior flexibility and heat dissipation, along with a unique gum adhesion that reduces fiber pullout within the belt extending the life of the belt. Gates combines material science and process engineering to create innovative products that provide performance, reliability and the strength to withstand even the most challenging off-road environments.
Break In Procedure
If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these three steps to ensure the best performance and longest life from your G-Force™ belt.
1. Install the Right Belt. Using a belt that’s even slightly different than the OE specifications can affect performance - or stop you in your tracks.
2. Align and Clean. Align the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.
3. Install and Break It In. Perform two heat cycles (10-15 minutes each) at 80°F at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of 60°F or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
- Advanced carbon cord results in minimal stretch with extraordinary strength for faster acceleration.
- Trapezoidal top cog with rounded bottom cog provides excellent flexibility and efficiency.
- Aramid fiber loaded elastomer compound for durability and optimized performance.
- Gains optimal power transmission for fast acceleration, improved throttle response, and consistent shifting performance.
- Maintains peak power throughout the shift curve.
Break In Procedure
If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these three steps to ensure the best performance and longest life from your G-Force™ belt.
1. Install the Right Belt. Using a belt that’s even slightly different than the OE specifications can affect performance - or stop you in your tracks.
2. Align and Clean. Align the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.
3. Install and Break It In. Perform two heat cycles (10-15 minutes each) at 80°F at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of 60°F or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
Not Available
Pricing:
$106.83
Application Detail
Years | Make | Model | Submodel | Notes |
---|---|---|---|---|
2005 - 2013 | Kawasaki | Brute Force 650 | KVF650D 4x4 | |
2005 - 2009 | Kawasaki | Brute Force 650 | KVF650E 4x4 | |
2006 - 2013 | Kawasaki | Brute Force 650 | KVF650F 4x4i | |
2006 - 2009 | Kawasaki | Brute Force 650 | KVF650G 4x4i | |
2007 - 2008 | Kawasaki | Brute Force 650 | KVF650H 4x4i | |
2015 - 2016 | Kawasaki | Brute Force 750 | KVF750 4x4i | |
2015 - 2016 | Kawasaki | Brute Force 750 | KVF750 4x4i EPS | |
2015 - 2016 | Kawasaki | Brute Force 750 | KVF750 4x4i EPS Camo | |
2005 - 2008 | Kawasaki | Brute Force 750 | KVF750A 4x4i | |
2005 - 2007 | Kawasaki | Brute Force 750 | KVF750B 4x4i | |
2006 - 2007 | Kawasaki | Brute Force 750 | KVF750C 4x4i | |
2008 - 2011 | Kawasaki | Brute Force 750 | KVF750D 4x4i | |
2007 - 2007 | Kawasaki | Brute Force 750 | KVF750D 4x4i NRA | |
2008 - 2010 | Kawasaki | Brute Force 750 | KVF750E 4x4i | |
2008 - 2009 | Kawasaki | Brute Force 750 | KVF750EA 4x4i NRA | |
2012 - 2014 | Kawasaki | Brute Force 750 | KVF750G 4x4i EPS | |
2012 - 2014 | Kawasaki | Brute Force 750 | KVF750H 4x4i EPS | |
2013 - 2013 | Kawasaki | Brute Force 750 | KVF750J 4x4i | |
2012 - 2014 | Kawasaki | Brute Force 750 | KVF750L 4x4i | |
2005 - 2009 | Kawasaki | KFX700 | -- | |
2005 - 2006 | Kawasaki | KFX700 | IG | |
2004 - 2004 | Kawasaki | KFX700 | V Force | |
2003 - 2013 | Kawasaki | Prairie 360 | KVF360A 4x4 | |
2003 - 2009 | Kawasaki | Prairie 360 | KVF360B | |
2003 - 2011 | Kawasaki | Prairie 360 | KVF360C 4x4 | |
2002 - 2003 | Kawasaki | Prairie 650 | KVF650A 4x4 | |
2003 - 2003 | Kawasaki | Prairie 650 | KVF650B | |
2004 - 2006 | Kawasaki | Prairie 700 | KVF700A 4x4 | |
2004 - 2005 | Kawasaki | Prairie 700 | KVF700B 4x4 | |
2005 - 2006 | Kawasaki | Prairie 700 | KVF700D 4x4 Team Green | |
2008 - 2008 | Kawasaki | Teryx 750 | KRF750A 4x4 | |
2008 - 2008 | Kawasaki | Teryx 750 | KRF750B 4x4 | |
2008 - 2008 | Kawasaki | Teryx 750 | KRF750C 4x4 LE | |
2008 - 2008 | Kawasaki | Teryx 750 | KRF750D 4x4 LE | |
2008 - 2008 | Kawasaki | Teryx 750 | KRF750F 4x4 NRA | |
2009 - 2009 | Kawasaki | Teryx 750 | KRF750G 4x4 FI | |
2009 - 2009 | Kawasaki | Teryx 750 | KRF750J 4x4 LE FI | |
2009 - 2009 | Kawasaki | Teryx 750 | KRF750K 4x4 LE FI | |
2009 - 2009 | Kawasaki | Teryx 750 | KRF750L 4x4 Sport FI | |
2009 - 2009 | Kawasaki | Teryx 750 | KRF750LA 4x4 Sport Monster Energy FI | |
2009 - 2009 | Kawasaki | Teryx 750 | KRF750M 4x4 NRA FI | |
2010 - 2013 | Kawasaki | Teryx 750 | KRF750N 4x4 FI | |
2010 - 2013 | Kawasaki | Teryx 750 | KRF750P 4x4 LE FI | |
2010 - 2013 | Kawasaki | Teryx 750 | KRF750R 4x4 LE FI | |
2010 - 2013 | Kawasaki | Teryx 750 | KRF750S 4x4 Sport FI | |
2011 - 2011 | Kawasaki | Teryx 750 | KRF750T 4x4 Special Graphics Edition FI | |
2012 - 2012 | Kawasaki | Teryx 750 | KRF750V 4x4 Special Graphics Edition FI | |
2012 - 2012 | Kawasaki | Teryx4 750 | KRT750A 4x4 | |
2012 - 2013 | Kawasaki | Teryx4 750 | KRT750B 4x4 EPS | |
2012 - 2013 | Kawasaki | Teryx4 750 | KRT750C 4x4 LE EPS | |
2012 - 2013 | Kawasaki | Teryx4 750 | KRT750D 4x4 EPS | |
2002 - 2002 | Suzuki | Eiger 400 | LTA400 2x4 | |
2003 - 2004 | Suzuki | Eiger 400 | LTA400 2x4 Auto | |
2003 - 2007 | Suzuki | Eiger 400 | LTA400F 4x4 Auto | |
2006 - 2006 | Suzuki | Eiger 400 | LTA400F 4x4 Celebration Edition | |
2004 - 2006 | Suzuki | Eiger 400 | LTA400FC 4x4 Auto Advantage | |
2008 - 2010 | Suzuki | King Quad 400 | LTA400F 4x4 AS | |
2011 - 2016 | Suzuki | King Quad 400 | LTA400F 4x4 ASi | |
2009 - 2009 | Suzuki | King Quad 400 | LTA400FQ 4x4 Anniversary Edition AS | |
2014 - 2014 | Suzuki | King Quad 400 | LTA400FZ 4x4 Limited ASi |
Shipping Information
- Item Requires Shipping
- 15.0 lbs.
- W10.0000” x H1.0000” x L8.0000”
- Free Shipping!
