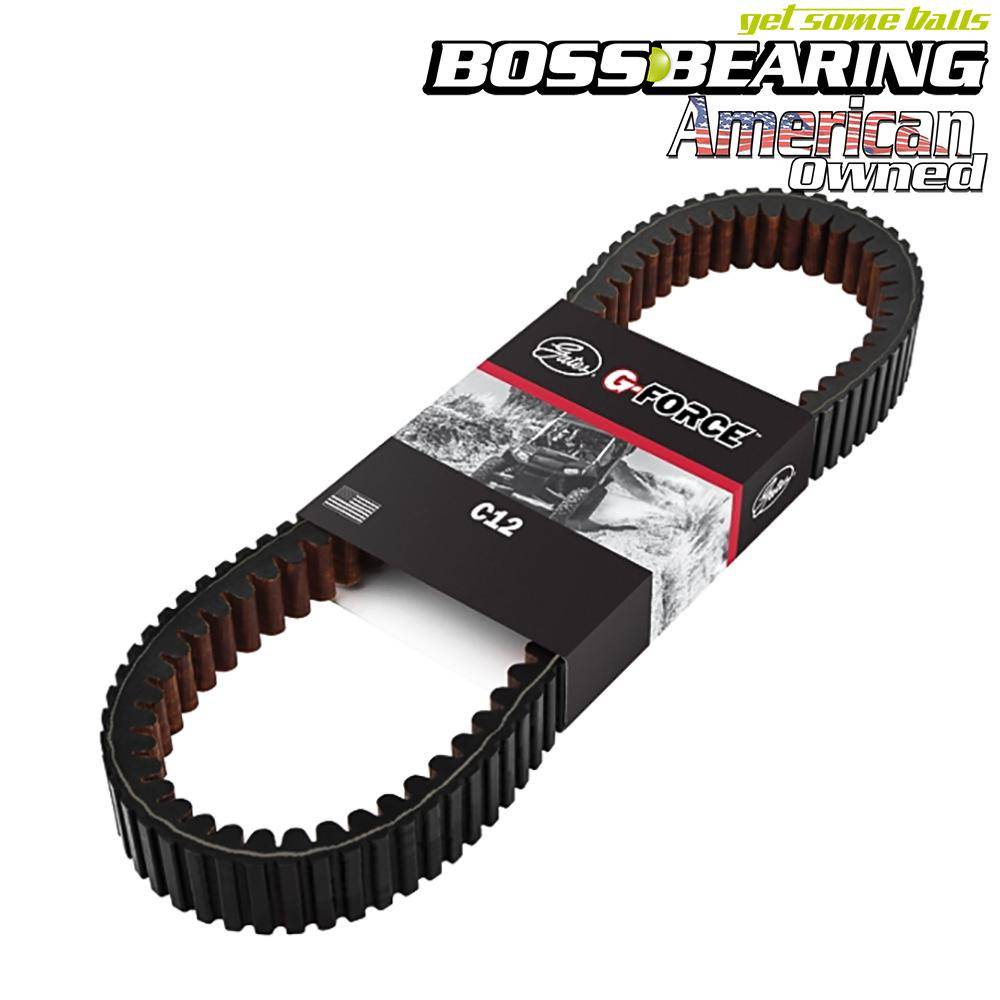

Gates 11C3218 G Force C12 CVT Carbon Drive Belt

See below to confirm fitment.

11C3218
For over a century, Gates has driven innovation in belt technology to power the machines that move you. Gates G-Force® C12® CVT belt drives are engineered to navigate the toughest off-road trails with power and efficiency. The industry's first CVT belt with carbon tensile cord also features a trapezoid top-notch and rounded cog design for superior flexibility and heat dissipation, along with a unique gum adhesion that reduces fiber pullout within the belt extending the life of the belt. Gates combines material science and process engineering to create innovative products that provide performance, reliability and the strength to withstand even the most challenging off-road environments.

  • Advanced carbon cord results in minimal stretch with extraordinary strength for faster acceleration.
  • Trapezoidal top cog with rounded bottom cog provides excellent flexibility and efficiency.
  • Aramid fiber loaded elastomer compound for durability and optimized performance.
  • Gains optimal power transmission for fast acceleration, improved throttle response, and consistent shifting performance.
  • Maintains peak power throughout the shift curve.

Break In Procedure
If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these three steps to ensure the best performance and longest life from your G-Force™ belt.

1. Install the Right Belt. Using a belt that’s even slightly different than the OE specifications can affect performance - or stop you in your tracks.

2. Align and Clean. Align the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.

3. Install and Break It In. Perform two heat cycles (10-15 minutes each) at 80°F at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of 60°F or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
Not Available
Pricing: $103.07

Application Detail

YearsMakeModelSubmodelNotes
2011 - 2012Arctic Cat3504x4 Automatic
2008 - 2009Arctic Cat3664x4 Automatic
2010 - 2011Arctic Cat3664x4 SE Automatic
2014 - 2015Arctic Cat4004X4
2009 - 2010Arctic Cat4004x4 TRV Automatic
2013 - 2013Arctic Cat400CR
2014 - 2014Arctic Cat400TRV
2013 - 2013Arctic Cat400TRV CR
2011 - 2011Arctic Cat4254x4 CR EFI
2012 - 2012Arctic Cat4254x4 EFI
2012 - 2012Arctic Cat4254x4 SE EFI
2014 - 2015Arctic Cat4504X4
2011 - 2012Arctic Cat4504x4 EFI
2012 - 2012Arctic Cat4504x4 GT EFI
2010 - 2010Arctic Cat4504x4 H1 Automatic EFI
2011 - 2011Arctic Cat4504x4 LTD EFI
2011 - 2012Arctic Cat4504x4 TRV EFI
2012 - 2012Arctic Cat4504x4 TRV GT EFI
2013 - 2013Arctic Cat450CR
2014 - 2016Arctic Cat5004X4
2013 - 2013Arctic Cat5004x4 CR
2014 - 2015Arctic Cat5004x4 TRV
2013 - 2013Arctic Cat5004x4 TRV CR
2013 - 2014Arctic Cat5004x4 XT
2016 - 2016Arctic CatAlterra 4004X4
2016 - 2016Arctic CatAlterra 4504X4
2016 - 2016Arctic CatAlterra 5004x4 XT EPS
2016 - 2016Arctic CatHDX 5004x4 XT
2014 - 2015Arctic CatProwler HDX 5004X4
2014 - 2014Arctic CatProwler HDX 5004x4 Limited
2014 - 2014Arctic CatProwler HDX 5004x4 XT
2013 - 2016Arctic CatXC4504X4
2011 - 2012Arctic CatXC4504x4 EFI
2015 - 2015Arctic CatXR 5004X4
2010 - 2010KYMCOMaxxer 3754x4 IRS
2015 - 2016KYMCOMaxxer 450i4X4
2014 - 2014KYMCOMaxxer 450i4x4 EFI
2012 - 2013KYMCOMaxxer 450i4x4 IRS
2009 - 2009KYMCOMXU 3754X4
2011 - 2013KYMCOMXU 3754x4 IRS
2015 - 2016KYMCOMXU 450i4X4
2012 - 2014KYMCOMXU 450i4x4 EFI IRS
2016 - 2016KYMCOMXU 450i4x4 LE
2015 - 2015KYMCOMXU 450i4x4 LE 50th Anniversary
2013 - 2014KYMCOMXU 450i4x4 LE EFI IRS

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 13.0 lbs.
  • W10.0000” x H1.0000” x L8.0000”
  • Free Shipping!
