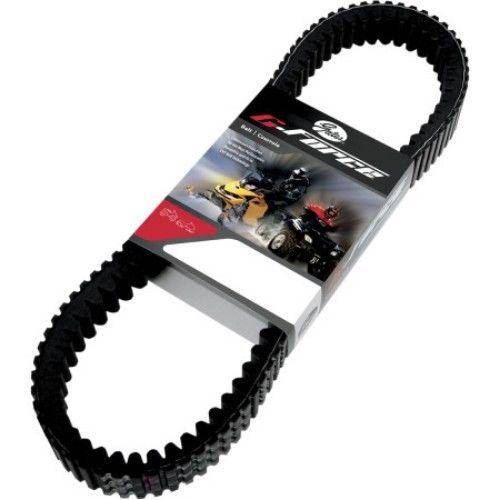

Gates 29C3596 G Force C12 CVT Carbon Drive Belt
Drive Belt
29C3596
For over a century, Gates has driven innovation in belt technology to power the machines that move you. Gates G-Force® C12® CVT belt drives are engineered to navigate the toughest off-road trails with power and efficiency. The industry's first CVT belt with carbon tensile cord also features a trapezoid top-notch and rounded cog design for superior flexibility and heat dissipation, along with a unique gum adhesion that reduces fiber pullout within the belt extending the life of the belt. Gates combines material science and process engineering to create innovative products that provide performance, reliability and the strength to withstand even the most challenging off-road environments.
Break In Procedure
If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these three steps to ensure the best performance and longest life from your G-Force™ belt.
1. Install the Right Belt. Using a belt that’s even slightly different than the OE specifications can affect performance - or stop you in your tracks.
2. Align and Clean. Align the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.
3. Install and Break It In. Perform two heat cycles (10-15 minutes each) at 80°F at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of 60°F or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
Replaces OEM part numbers: 28P-17641-00-00.
- Advanced carbon cord results in minimal stretch with extraordinary strength for faster acceleration.
- Trapezoidal top cog with rounded bottom cog provides excellent flexibility and efficiency.
- Aramid fiber loaded elastomer compound for durability and optimized performance.
- Gains optimal power transmission for fast acceleration, improved throttle response, and consistent shifting performance.
- Maintains peak power throughout the shift curve.
Break In Procedure
If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these three steps to ensure the best performance and longest life from your G-Force™ belt.
1. Install the Right Belt. Using a belt that’s even slightly different than the OE specifications can affect performance - or stop you in your tracks.
2. Align and Clean. Align the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.
3. Install and Break It In. Perform two heat cycles (10-15 minutes each) at 80°F at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of 60°F or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
Replaces OEM part numbers: 28P-17641-00-00.
Limited Supply: only 2 remaining
Free Shipping!
Pricing:
$172.13
Application Detail
| Years | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2013 - 2013 | Arctic Cat | Wildcat 4 1000 | -- | |
| 2013 - 2013 | Arctic Cat | Wildcat X 1000 | -- | |
| 2009 - 2013 | Yamaha | Grizzly 550 | YFM550FG 4x4 FI | |
| 2010 - 2013 | Yamaha | Grizzly 550 | YFM550FGP 4x4 FI EPS | |
| 2002 - 2004 | Yamaha | Grizzly 660 | YFM660F 4x4 | |
| 2005 - 2008 | Yamaha | Grizzly 660 | YFM660FA 4x4 | |
| 2007 - 2007 | Yamaha | Grizzly 660 | YFM660FG 4x4 | |
| 2008 - 2013 | Yamaha | Grizzly 700 | YFM700FG 4x4 FI | |
| 2007 - 2007 | Yamaha | Grizzly 700 | YFM700FGP 4x4 FI | |
| 2008 - 2013 | Yamaha | Grizzly 700 | YFM700FGP 4x4 FI EPS | |
| 2009 - 2013 | Yamaha | Grizzly 700 | YFM700FGPSE 4x4 Special Edition FI EPS | |
| 2017 - 2018 | Yamaha | Grizzly 700 | YFM700P 4x4 FI EPS | |
| 2017 - 2018 | Yamaha | Kodiak 700 | YFM700K 4x4 FI | |
| 2017 - 2018 | Yamaha | Kodiak 700 | YFM700KP 4x4 FI EPS | |
| 2017 - 2018 | Yamaha | Kodiak 700 | YFM700KPSE 4x4 Special Edition FI EPS | |
| 2006 - 2007 | Yamaha | Rhino 660 | YXR660FAEX 4x4 Exploring Edition | |
| 2006 - 2006 | Yamaha | Rhino 660 | YXR660FASE 4x4 Special Edition | |
| 2007 - 2007 | Yamaha | Rhino 660 | YXR660FDU 4x4 Ducks Unlimited Edition | |
| 2007 - 2007 | Yamaha | Rhino 660 | YXR660FSE 4x4 Special Edition | |
| 2007 - 2007 | Yamaha | Rhino 660 | YXR660FSP 4x4 Sport Edition |
