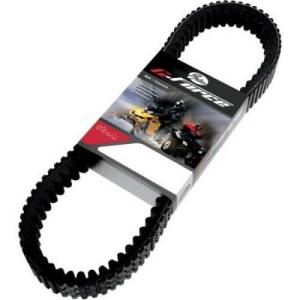

Gates 30C3750 G Force C12 CVT Carbon Drive Belt

Drive Belt

(0) Reviews: Write first review
30C3750
For over a century, Gates has driven innovation in belt technology to power the machines that move you. Gates G-Force® C12® CVT belt drives are engineered to navigate the toughest off-road trails with power and efficiency. The industry's first CVT belt with carbon tensile cord also features a trapezoid top-notch and rounded cog design for superior flexibility and heat dissipation, along with a unique gum adhesion that reduces fiber pullout within the belt extending the life of the belt. Gates combines material science and process engineering to create innovative products that provide performance, reliability and the strength to withstand even the most challenging off-road environments.

  • Advanced carbon cord results in minimal stretch with extraordinary strength for faster acceleration.
  • Trapezoidal top cog with rounded bottom cog provides excellent flexibility and efficiency.
  • Aramid fiber loaded elastomer compound for durability and optimized performance.
  • Gains optimal power transmission for fast acceleration, improved throttle response, and consistent shifting performance.
  • Maintains peak power throughout the shift curve.

Break In Procedure
If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these three steps to ensure the best performance and longest life from your G-Force™ belt.

1. Install the Right Belt. Using a belt that’s even slightly different than the OE specifications can affect performance - or stop you in your tracks.

2. Align and Clean. Align the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.

3. Install and Break It In. Perform two heat cycles (10-15 minutes each) at 80°F at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of 60°F or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.
Not Available
Pricing: $127.12

Application Detail

YearsMakeModelSubmodelNotes
2011 - 2014Can-AmCommander 10004X4
2016 - 2016Can-AmCommander 10004x4 DPS
2013 - 2013Can-AmCommander 10004x4 DPS EFI
2012 - 2013Can-AmCommander 10004x4 EFI
2013 - 2013Can-AmCommander 10004x4 LTD
2012 - 2012Can-AmCommander 10004x4 LTD EFI
2011 - 2011Can-AmCommander 10004x4 X
2012 - 2012Can-AmCommander 10004x4 X EFI
2011 - 2011Can-AmCommander 10004x4 XT
2016 - 2016Can-AmCommander 10004x4 XT DPS
2012 - 2013Can-AmCommander 10004x4 XT EFI
2014 - 2014Can-AmCommander 8004X4
2014 - 2014Can-AmCommander 8004x4 DPS
2014 - 2014Can-AmCommander 8004x4 XT
2011 - 2016Can-AmCommander 800R4X4
2013 - 2013Can-AmCommander 800R4x4 DPS EFI
2012 - 2013Can-AmCommander 800R4x4 EFI
2011 - 2011Can-AmCommander 800R4x4 XT
2012 - 2013Can-AmCommander 800R4x4 XT EFI
2014 - 2016Can-AmCommander Max 10004x4 DPS
2015 - 2015Can-AmCommander Max 10004x4 XT
2016 - 2016Can-AmCommander Max 10004x4 XT DPS
2013 - 2016Can-AmMaverick 1000R4X4
2014 - 2015Can-AmMaverick Max 1000R4X4
2015 - 2015Can-AmOutlander 10004x4 DPS
2012 - 2012Can-AmOutlander 10004x4 EFI
2015 - 2015Can-AmOutlander 10004x4 XMR
2015 - 2015Can-AmOutlander 10004x4 XT
2012 - 2014Can-AmOutlander 10004x4 XT EFI
2015 - 2015Can-AmOutlander 10004x4 XTP
2013 - 2014Can-AmOutlander 10004x4 XTP EFI
2015 - 2016Can-AmOutlander 10006x6 XT
2016 - 2016Can-AmOutlander 1000R4x4 DPS
2016 - 2016Can-AmOutlander 1000R4x4 XMR DPS
2016 - 2016Can-AmOutlander 1000R4x4 XT DPS
2015 - 2015Can-AmOutlander 5004x4 DPS
2011 - 2014Can-AmOutlander 5004x4 EFI
2015 - 2015Can-AmOutlander 5004x4 XT
2011 - 2014Can-AmOutlander 5004x4 XT EFI
2007 - 2010Can-AmOutlander 5004x4 XT HO EFI
2016 - 2016Can-AmOutlander 5704x4 DPS
2016 - 2016Can-AmOutlander 5704x4 XT DPS
2015 - 2016Can-AmOutlander 6504X4
2015 - 2015Can-AmOutlander 6504x4 DPS
2011 - 2014Can-AmOutlander 6504x4 EFI
2015 - 2015Can-AmOutlander 6504x4 XMR
2016 - 2016Can-AmOutlander 6504x4 XMR DPS
2015 - 2015Can-AmOutlander 6504x4 XT
2016 - 2016Can-AmOutlander 6504x4 XT DPS
2011 - 2014Can-AmOutlander 6504x4 XT EFI
2007 - 2010Can-AmOutlander 6504x4 XT HO EFI
2015 - 2015Can-AmOutlander 6506x6 XT
2007 - 2008Can-AmOutlander 8004x4 HO EFI
2007 - 2008Can-AmOutlander 8004x4 XT HO EFI
2015 - 2015Can-AmOutlander 800R4X4
2015 - 2015Can-AmOutlander 800R4x4 DPS
2011 - 2014Can-AmOutlander 800R4x4 EFI
2015 - 2015Can-AmOutlander 800R4x4 XMR
2015 - 2015Can-AmOutlander 800R4x4 XT
2011 - 2014Can-AmOutlander 800R4x4 XT EFI
2009 - 2010Can-AmOutlander 800R4x4 XT HO EFI
2016 - 2016Can-AmOutlander 8504x4 DPS
2016 - 2016Can-AmOutlander 8504x4 XMR DPS
2016 - 2016Can-AmOutlander 8504x4 XT DPS
2015 - 2015Can-AmOutlander L 5004X4
2016 - 2016Can-AmOutlander L 5704X4
2016 - 2016Can-AmOutlander L 5704x4 XMR DPS
2015 - 2015Can-AmOutlander L MAX 5004X4
2016 - 2016Can-AmOutlander L MAX 5704X4
2015 - 2015Can-AmOutlander Max 10004x4 DPS
2015 - 2015Can-AmOutlander Max 10004x4 LTD
2015 - 2015Can-AmOutlander Max 10004x4 XT
2016 - 2016Can-AmOutlander Max 1000R4x4 LTD DPS
2016 - 2016Can-AmOutlander Max 1000R4x4 XT DPS
2015 - 2015Can-AmOutlander Max 5004x4 DPS
2011 - 2014Can-AmOutlander Max 5004x4 EFI
2015 - 2015Can-AmOutlander Max 5004x4 XT
2011 - 2014Can-AmOutlander Max 5004x4 XT EFI
2007 - 2010Can-AmOutlander Max 5004x4 XT HO EFI
2016 - 2016Can-AmOutlander Max 5704x4 DPS
2016 - 2016Can-AmOutlander Max 5704x4 XT DPS
2015 - 2015Can-AmOutlander Max 6504X4
2015 - 2016Can-AmOutlander Max 6504x4 DPS
2011 - 2014Can-AmOutlander Max 6504x4 EFI
2015 - 2015Can-AmOutlander Max 6504x4 XT
2016 - 2016Can-AmOutlander Max 6504x4 XT DPS
2011 - 2014Can-AmOutlander Max 6504x4 XT EFI
2007 - 2010Can-AmOutlander Max 6504x4 XT HO EFI
2007 - 2008Can-AmOutlander Max 8004x4 HO EFI
2007 - 2008Can-AmOutlander Max 8004x4 LTD HO EFI
2007 - 2008Can-AmOutlander Max 8004x4 XT HO EFI
2015 - 2015Can-AmOutlander Max 800R4x4 DPS
2009 - 2010Can-AmOutlander Max 800R4x4 HO EFI
2009 - 2010Can-AmOutlander Max 800R4x4 LTD HO EFI
2015 - 2015Can-AmOutlander Max 800R4x4 XT
2009 - 2010Can-AmOutlander Max 800R4x4 XT HO EFI
2016 - 2016Can-AmOutlander Max 8504x4 XT DPS
2015 - 2015Can-AmRenegade 10004X4
2012 - 2014Can-AmRenegade 10004x4 EFI
2015 - 2015Can-AmRenegade 10004x4 XXC
2012 - 2012Can-AmRenegade 10004x4 XXC EFI
2016 - 2016Can-AmRenegade 1000R4X4
2016 - 2016Can-AmRenegade 1000R4x4 XXC DPS
2009 - 2015Can-AmRenegade 5004X4
2010 - 2014Can-AmRenegade 5004x4 EFI
2008 - 2008Can-AmRenegade 5004x4 HO EFI
2016 - 2016Can-AmRenegade 5704X4
2007 - 2008Can-AmRenegade 8004x4 HO EFI
2015 - 2015Can-AmRenegade 800R4X4
2012 - 2014Can-AmRenegade 800R4x4 EFI
2015 - 2015Can-AmRenegade 800R4x4 XXC
2012 - 2014Can-AmRenegade 800R4x4 XXC EFI
2016 - 2016Can-AmRenegade 8504X4
2016 - 2016Can-AmRenegade 8504x4 XXC DPS
